The VIQUA SHF-290 Model is a 290 GPM, high-flow, multi-lamp, commercial UV disinfection system that renders chlorine-resistant parasites, bacteria, and viruses harmless. This five lamp system features a separate control panel with high visibility components, stainless steel chamber, and capable of 100-240V, 50-60Hz.
REPLACEMENT PARTS
Lamp (S950RL-4C) x5 - Replace every 12 months
Quartz Sleeve (QSO-950) x5 - Replace every 24 months or as needed

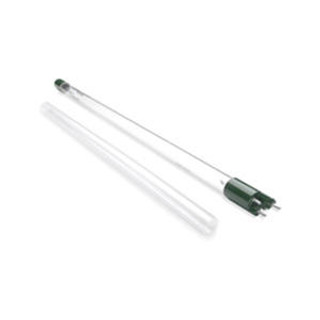

Lamp/Sleeve Combo Kit (QL-290) x5
Features
END-OF-LIFE TIMER: Counts down the days until annual lamp replacement
2X OUTPUT: 2X the output of standard lamps
Specs
- Flow Rate: 290 Gallons Per Minute
- Application: Point-of-Entry
- Power: 100-240V 50-60Hz 550W N. American Plug
- Overall Dimensions: 43" x 8" x 17"
- Inlet Dimensions: 4" Flange
- Outlet Dimensions: 4" Flange
- Electrical Plug Types Available:
- B – North & Central America, Japan (NEMA 5-15P)
- F – Europe, Brazil, Russia (CEE 7/7)
- G – UK, Ireland, Singapore, Hong Kong (BS 1363)
- I – Australia, New Zealand, Argentina (AS 3112)
Downloads
VIQUA SHF-290 Model UV System Owners Manual
