The VIQUA S2Q-OZ is an Ozone Disinfection system designed for hot tubs or spa applications using UV Light to create Ozone. Designed to be used with an Air Venturi system, the VIQUA S2Q-OZ injects the produced Ozone into the circulated water to provide cleaner, disinfected water with less chemicals and extending the life of the hot tub or spa. The S2Q-OZ produces 70 mg Ozone @ 5 SCFH air flow for smaller water usage such as a hot tub. Since the S2Q-OZ generates Ozone air, there is no need for a quartz sleeve, making maintenance that much easier. It features compact size for convenient installation and stainless steel chamber to protect the UV lamp. Capable of 100-240V, 50-60Hz. NOTE: The Air Venturi installation kit OE-001 is sold separately.
REPLACEMENT PARTS

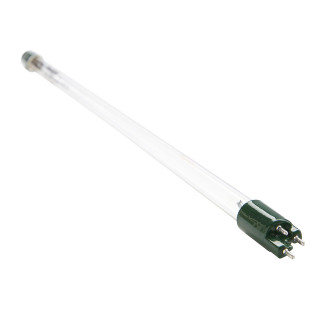

Lamp (S415ROL) - Replace every 12 months
Features
END-OF-LIFE TIMER: Counts down the days until annual lamp replacement
Specs
- Flow Rate: 70 mg ozone @ 5 SCFH air flow
- Application: Hot Tubs/Spas
- Power: 100-240V 50-60Hz 22W N. American Plug
- Chamber Dimensions: 15" x 2.5"
- Connection Size: 3/8" Tube
